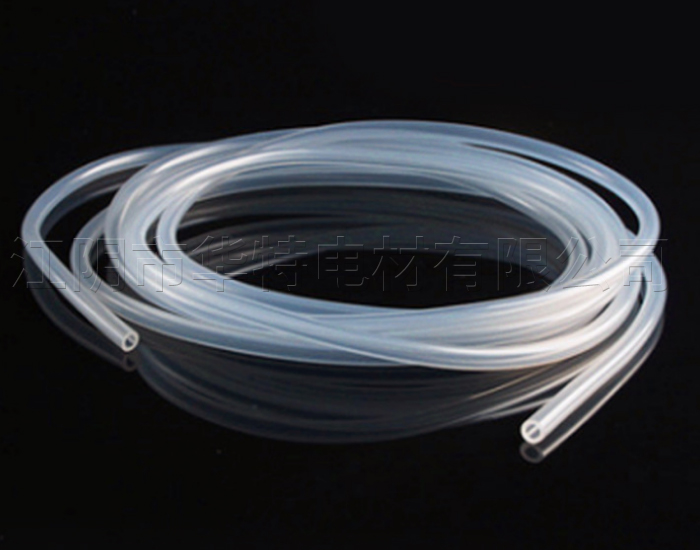

Silicone tube application
General application of medical equipment, home appliances, aerospace, military, automotive manufacturing, electronic components, transformers, motors.

Parameter

Property	Tensile strength	Tensibility	Tear strength	Volume resistivity	Dielectric strength	Dielectric constant	Tangent of dielectric loss Angle	Flame retardant	Service temperature range
Property	MPa{Kg/cm2}	%	KN/m{Kg f/cm}	Ω.m {Ω.cm}	KV/mm	50Hz	50Hz	UL-1441	(℃)
Flame retardant	6.9{70}	400	24.5{25}	2x10^12 2x10^14	25	3.2	0.001	VW-1	-50~+200
Ordinary type	6.9{70}	400	24.5{25}	2x10^12 2x10^14	25	3.2	0.001	——	-50~+200

Inner diameter(mm)		Wall thickness(mm)				Packaging
Standard	Tolerance	2.5KV	4KV	6KV	7KV	M/R
0.5	±0.2	0.25				200
1.0	±0.2	0.50	1.00	1.50	2.00	200
1.5	±0.3	0.50	1.00	1.50	2.00	200
2.0	±0.3	0.50	1.00	1.50	2.00	200
2.5	±0.3	0.50	1.00	1.50	2.00	200
3.0	±0.3	0.50	1.00	1.50	2.00	100
3.5	±0.3	0.50	1.00	1.50	2.00	100
4.0	±0.3	0.50	1.00	1.50	2.00	100
4.5	±0.3	0.50	1.00	1.50	2.00	100
5.0	±0.3	0.50	1.00	1.50	2.00	100
6.0	±0.5	0.50	1.00	1.50	2.00	100
7.0	±0.5	0.50	1.00	1.50	2.00	100
8.0	±0.5	0.50	1.00	1.50	2.00	100
9.0	±0.5	0.50	1.00	1.50	2.00	100
10.0	±0.5	0.50	1.00	1.50	2.00	50
11.0	±0.5		1.00	1.50	2.00	50
12.0	±0.5		1.00	1.50	2.00	50
13.0	±0.5		1.00	1.50	2.00	50
14.0	±0.6		1.00	1.50	2.00	50
15.0	±0.6		1.00	1.50	2.00	50
16.0	±0.6		1.00	1.50	2.00	50
17.0	±0.6		1.00	1.50	2.00	50
18.0	±0.6		1.00	1.50	2.00	50
19.0	±0.6		1.00	1.50	2.00	50
20.0	±0.6		1.00	1.50	2.00	50
